Beyond the Naked Eye: Turning Slitting Quality into a Competitive Advantage with SpechtLab EdgeCut

In the aggressive landscape of high-speed metallurgical production, a fundamental reality persists: Manufacturing is blind. While modern slitting lines operate at velocities exceeding 300 m/min, the critical metallurgical indicators of quality remain invisible to the naked eye. What appears to an operator as a clean cut is often a "saw-tooth" nightmare of micro-cracks and stress concentrations that compromise the fatigue life of the final product.

The "Invisible Cost" of Metal Slitting

In flat product manufacturing, edge trimming is frequently undervalued as a routine mechanical operation. This is a strategic error. Edge breaks, micro-tears, and the early stages of blade degradation are "invisible risks" that manifest later as catastrophic scrap rates, rejected coils, and diminished brand reputation.

The financial hemorrhaging is not limited to the material. Without real-time visibility, maintenance remains reactive. Blade wear is detected only after the "Burnish Zone" (Düzgün Makaslama Bölgesi) collapses and the "Controlled Fracture Zone" (Kontrollü Kopma Bölgesi) becomes erratic. This leads to unplanned downtime and the premature replacement of expensive circular knives—costs that directly erode ROI.

The Status Quo: Why Traditional "Manual" Control is Failing

The industry standard of periodic manual sampling and subjective operator checks is no longer viable at modern production speeds. The traditional "As-Is" scenario is characterized by several systemic failures:

• Undetectable Root Causes: Manual inspection cannot differentiate between failures caused by excessive blade clearance, progressive blade wear (dulling), or incorrect material hardness in real-time.

• Reactive Maintenance Latency: By the time a human eye detects a defect at 300 m/min, kilometers of non-conforming material have already been coiled.

• The Data-Process Gap: Traditional methods fail to establish a digital link between cutting quality and process parameters, preventing any meaningful dilme hattı optimizasyonu (slitting line optimization).

• Operational Inconsistency: Quality becomes a variable dependent on shift experience rather than a standardized, repeatable metric.

The EdgeCut Solution: Technical Architecture and Working Principle

The SpechtLab EdgeCut-Vision system is a sophisticated, non-destructive edge inspection solution that replaces subjective guesswork with high-precision stroboscopic data. It is not merely a camera; it is a specialized bıçak kesme kontrol sistemi (blade cutting control system) that interprets the metallurgical signature of every cut.

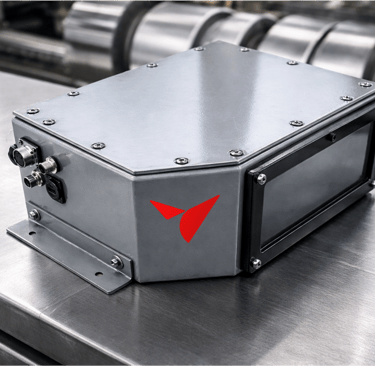

Hardware Architecture: Built for the Floor

The system’s physical layer is engineered for the rigors of a vibrating, dusty factory environment:

• Sensor Versatility: Utilizing high-resolution industrial GigE line-scan cameras as the primary inspection engine, the system also offers the flexibility of area-scan configurations for specific optical requirements.

• Stroboscopic LED Lighting: High-power LED units "freeze" the motion of high-speed strips, ensuring zero motion blur.

• Evaluation PC & Connectivity: A high-performance workstation running Windows 10, equipped with a Gigabit server adapter supporting JumboFrames. It is critical that every component in the transmission path supports JumboFrames to maintain the necessary data throughput.

• Ecosystem Integration: The system is fully compatible with SpechtLab Axon, allowing for seamless scaling across the enterprise.

AI & Software Intelligence: The Expert Eye

The system operates via a C#-based main application running as a background Windows service. With an algorithmic delay of less than 10 ms, the AI analyzes the ratio between the burnish and fracture zones.

• Adaptive Sampling: The system maintains a 1 kHz – 10 kHz adaptive sampling rate, ensuring that regardless of line speed, the inspection density remains constant.

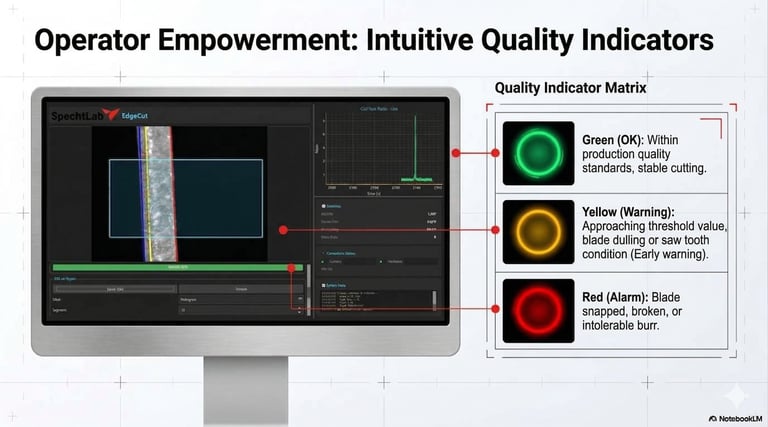

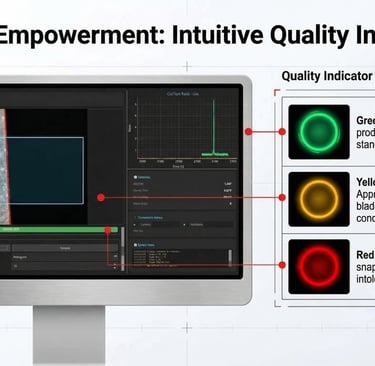

• Traffic Light Quality Indicators: 🟢 (OK), 🟡 (Warning/Threshold), and 🔴 (Alarm/Breakout) provide immediate actionable feedback to operators.

Technical Specifications:

• Spatial Resolution: 10–30 µm per pixel.

• Measurement Accuracy: ±0.05 mm (Standard) / ±0.02 mm (Optional Optics).

• Interface: Profinet, EtherNet/IP, or Modbus TCP for PLC/SCADA integration.

Case Study: World-First Implementation at Yıldız Demir Çelik

The efficacy of EdgeCut was validated through rigorous field tests at the Yıldız Demir Çelik facilities, supported by the TÜBİTAK 1507 R&D program. This project represents the only system in the world that combines this level of compactness with millisecond-level accuracy for edge defect analysis.

The Deployment Strategy

SpechtLab deployed two distinct configurations to prove versatility:

1. Standalone: Utilizing a carriage system and adjustable brackets for flexible positioning.

2. Integrated: Mounted directly onto the side trimmer console, where the sensor automatically maintains its working distance via the machine’s own positioning.

The Impact

With the leadership of Murat Sadık Güler and the operational support of Deniz Kavak, the system transformed "real edge data" into high-resolution visualization through the EdgeCut Viewer. The AI successfully identified micro-breaks and "built-up edges" (birikim kenarları) that were previously impossible to track, effectively digitizing the metallurgical expertise required to run the line.

Quantifiable Gains: The ROI of Precision

The implementation of EdgeCut delivers a clear business case by addressing the root causes of production inefficiency.

Benefit Area

EdgeCut Feature

Operational Impact

Scrap Reduction

Real-time slitting kalite kontrol

Early detection of irregular cuts prevents miles of waste.

Blade Optimization

Circular Knife Database

Tracks service life and identifies "built-up edges" before they cause damage.

Uptime Enhancement

Predictive Early Warnings

Reduces unplanned downtime by identifying blade dulling early.

Repeatability

Automated kenar kalite ölçüm

Eliminates operator bias; standardizes quality across all shifts.

Process Intelligence

PLC/MES Integration

Links quality data to process parameters for total line optimization.

Technical Differentiation: Why EdgeCut?

Conventional engineering approaches to edge inspection are often heavy, hantal (bulky), and nearly impossible to retrofit. SpechtLab has disrupted this with a compact, integrated, and real-time architecture.

The true differentiation lies in the çapak tespiti (burr detection) capability. Using optional triangulation sensors, EdgeCut visualizes the burr shape and alerts operators to threshold violations before they affect downstream processes. By analyzing the "Burnish Zone" against the "Controlled Fracture Zone," the system identifies whether defects are due to excessive blade clearance or material hardness mismatches. It doesn't just see a defect; it diagnoses the root cause.

Conclusion: Setting the Standard for Smart Manufacturing

In the era of Industry 4.0 and green manufacturing, waste is a failure of data, not just production. The SpechtLab EdgeCut-Vision system enables a "Smart Manufacturing" environment by providing the evidence-based decision-making tools required to eliminate invisible risks.

By integrating this technology, you are moving from reactive firefighting to proactive metallurgical control. Make the transition from blind manufacturing to data-driven precision.

Ready to transform your production quality? Contact SpechtLab today to request a technical demo and begin your journey toward dilme hattı optimizasyonu (slitting line optimization).

--------------------------------------------------------------------------------

Key Highlights Summary

• Unmatched Precision: Automated slitting kalite kontrol with 10–30 µm resolution and adaptive 1–10 kHz sampling.

• Advanced Metallurgy: Specialized AI analyzes the Burnish and Fracture zones to identify root causes like blade wear and clearance issues.

• Operational Intelligence: Comprehensive kenar kalite ölçüm and çapak tespiti (burr detection) integrated with SpechtLab Axon.

• Global Innovation: TÜBİTAK-supported R&D delivering the world’s most compact and accurate real-time edge analysis system.

• Sustainability: Drastically reduced scrap and optimized blade life for leaner, more efficient manufacturing.

Keywords: bıçak kesme kontrol sistemi, slitting kalite kontrol, çapak tespiti, kenar kalite ölçüm, dilme hattı optimizasyonu.
